|(Above) 27 Oct 1949 - Orville Edward "Pat" Tibbs poses in front of the XB-51 before the first flight||(Above) Martin XB-51, Front right view in color|
|(Above) Caption||(Above) Pilot's right-hand console contains the engine starting panel and the radio and lighting panels. The three large levers on the right are the control surface locks|
|(Above) Pilot's left-hand console, detail of the throttle levers and engine-related controls||(Above) Right side of the pilot's forward cockpit, with engine gauges and radio controls. On the bottom, the right rudder pedal.|
|(Above) View of the pilot's instrument panel through the small bubble canopy||(Above) Left-hand pilot's console aft of the throttles, which contains circuit breakers, air conditioning, bombing & gunnery panel, dive brake & flap controls|
|(Above) Pilot's left-hand console, with the fuel management panel just foward of the throttle quadrants. The lower indicator lights are for the two 375 gallon ferry tanks when installed.||(Above) Pilot's right-hand console - the picture was registered under two different numbers, see caption a few pictures above.|
|(Above) Detail of the fuel controls immediately in front of the throttle||(Above) Pilot's right-hand console vertical or lower portion contains the radio and interphone controls. All the cockpit photos are from the second XB-51, as indicated by the taped-on note above the radio which states "RADIO CALL 6686"|
|(Above) The pilot's right-hand circuit breaker panel is located just to the right of the control panel locks||(Above) Left-hand side of the Shoran operator's compartment showing the circuit breakers, lighting controls and flying suit heater control|

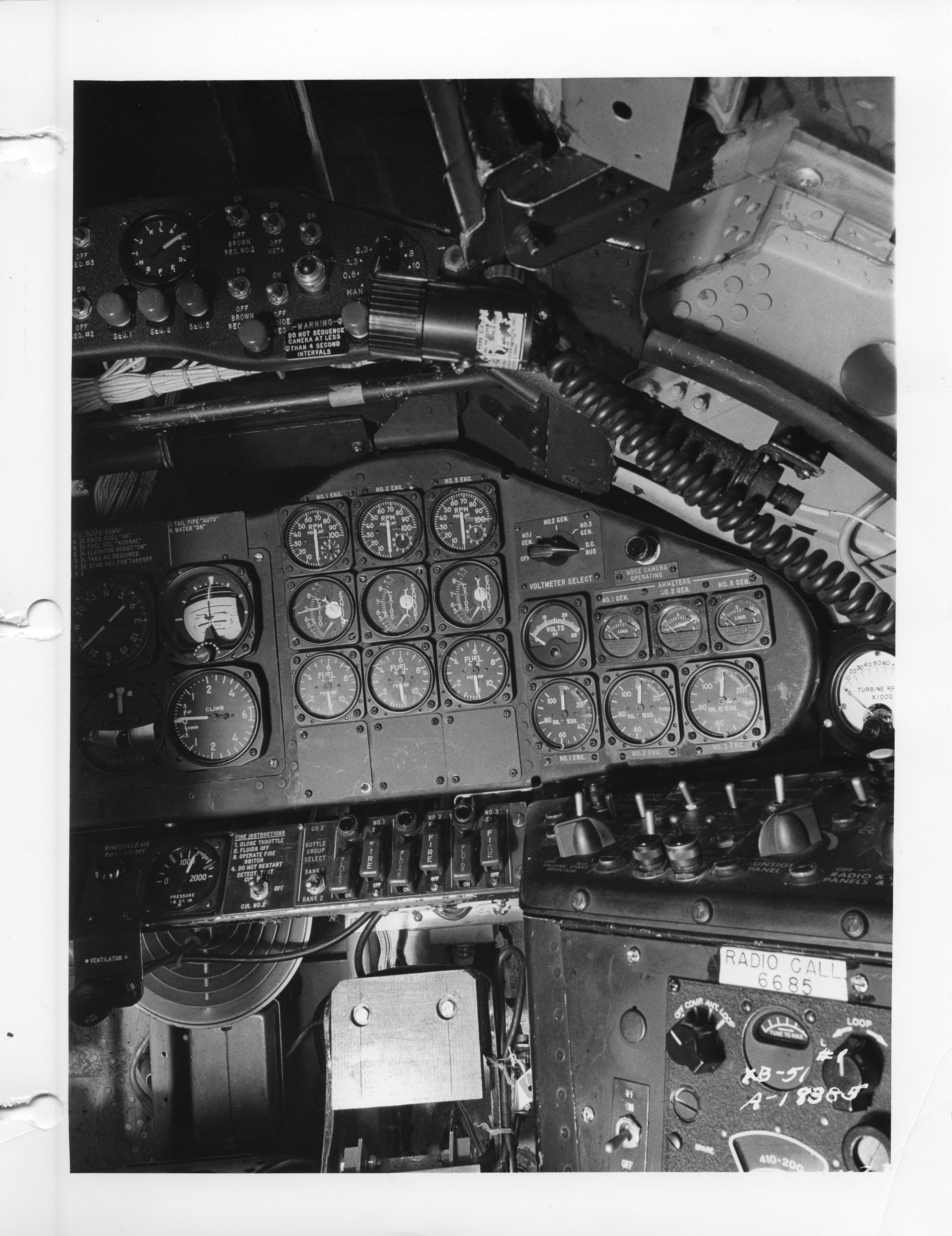

|(Above) Left-hand pilot's console aft of the throttles - the picture was registered under two different numbers, see caption a few pictures above.||(Above) Another look at the pilot's instrumentation - see the other pictures for more details.|
|(Above) This picture of the prototype in the assembly phase shows clearly both the left wing's leading edge slat and the wingtip with the outrigger wheel||(Above) The competitors: XB-51 and Canberra|
|(Above) 6685 tail with rear engine maintenance doors unlocked||(Above) Late in the test program, 6685 sported day-glo red high visibility markings on lower wing and front fuselage, that can be easily appreciated in this photo|
|(Above) Two 2,000 lb bombs mounted externally||(Above) The first ship at rollout - the World War two camouflage is still evident on the Martin factory buildings in the background|
|(Above) 17 Apr 1950 - The second XB-51 is prepped for its first flight. Compare the flap down and the flap up position between the two aircraft. The bullet fairing was added to the T-tail before its fiorst flight||(Above) The number two XB-51 poses for a PR shot with many of its potential weapons. Shown are: 5" HVAR rockets, 500 lb bombs, 750 lb. bombs, 1,000 lb. bombs and a 4,000 lb. bomb.|

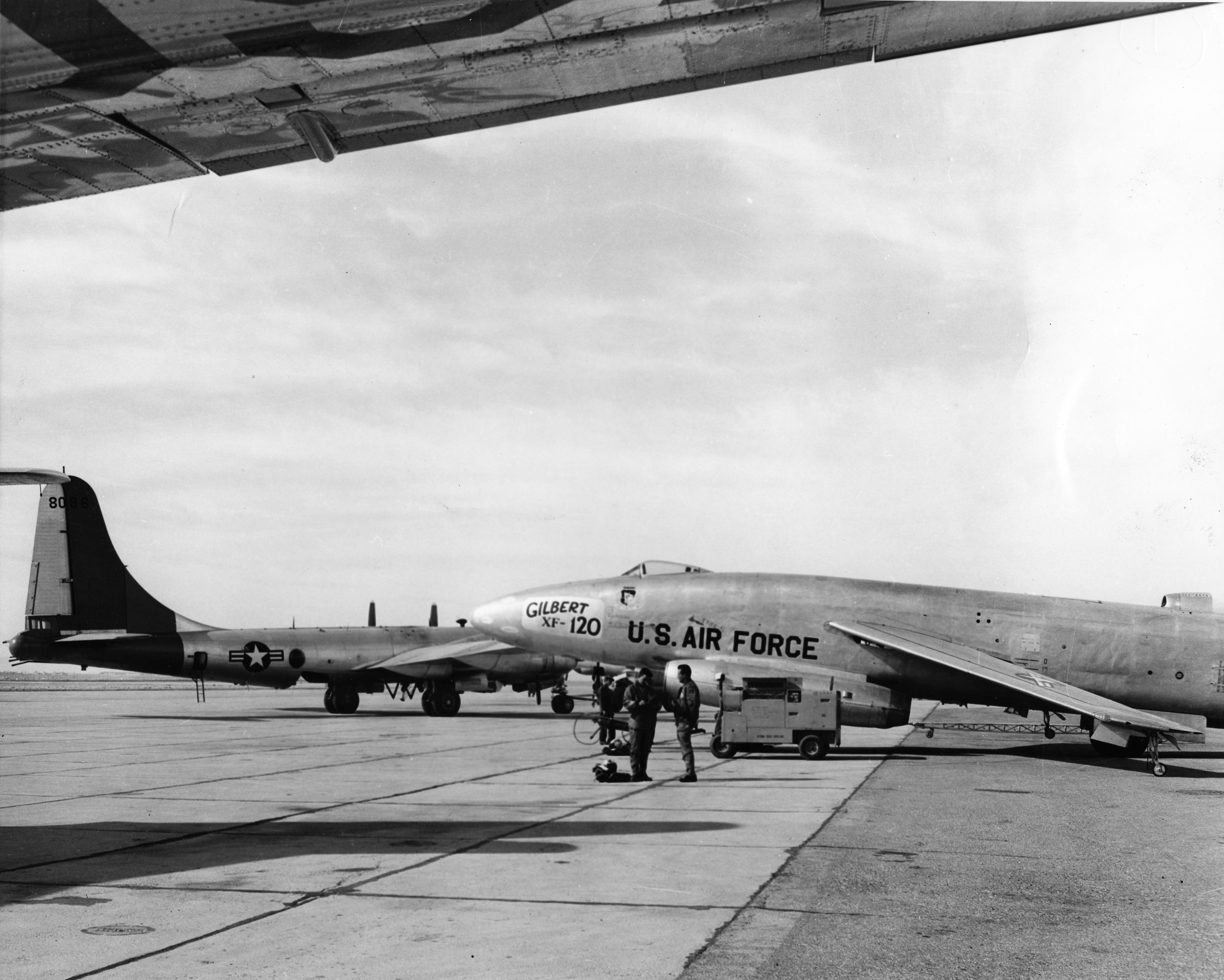

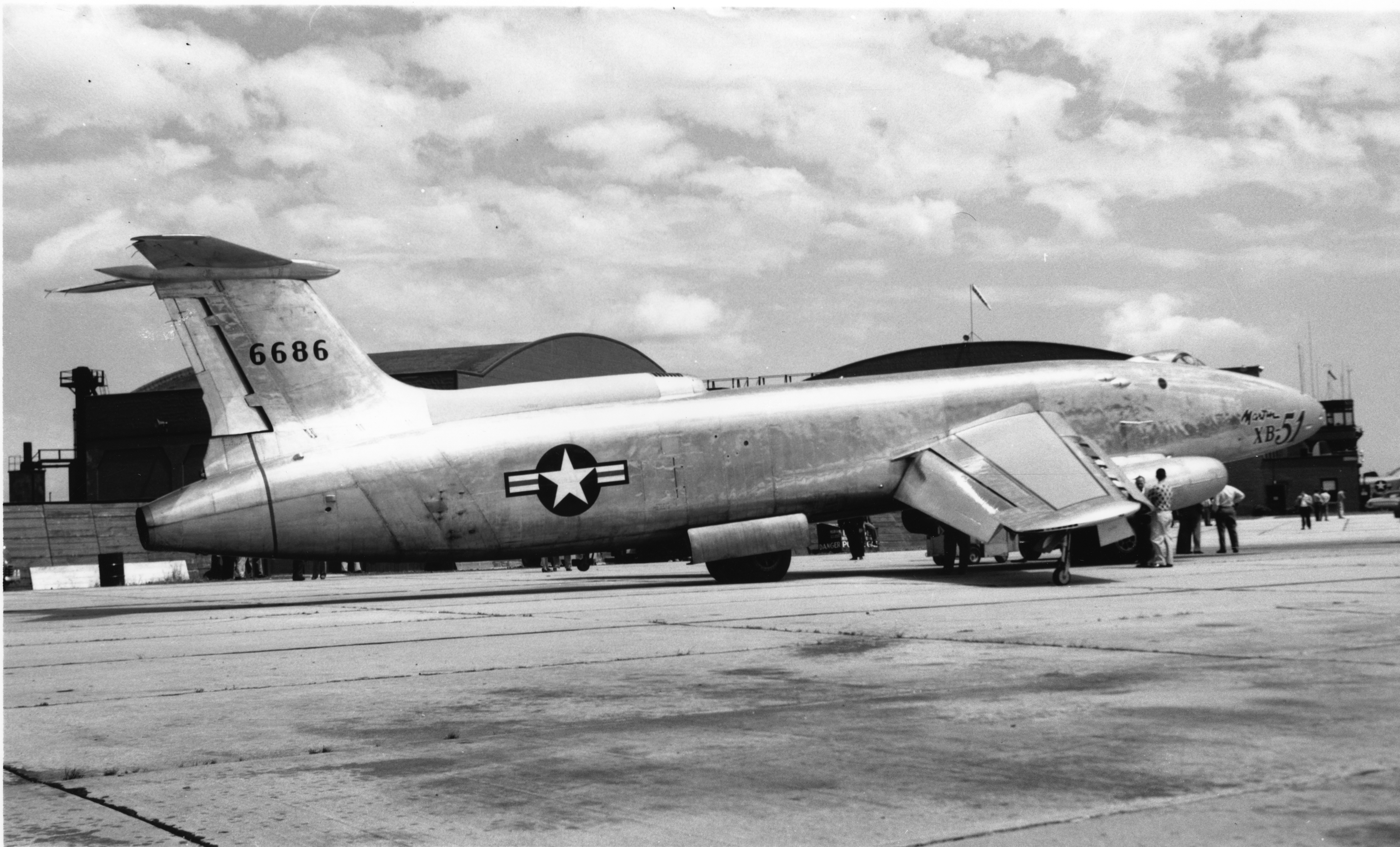

|(Above) Ship number one as a movie star: the XF-120 Gilbert fighter in "Towards the unknown" with William Holden. Doing the stunt flying was Air Force Major Pete Everest, famous also for his role in the X-2 programme.||(Above) Another shot of the "Gilbert XF-120"|
|(Above) Ship two with slats and flaps fully lowered||(Above) Ship one during the filming of "Towards the unknown"|
|(Above) Ship one at the beginning of a takeoff||(Above) the door for drag chute release and maintenance opened on the left just under the rudder|
|(Above) 4 Sep 1949 - Prototype 6685 roll-out. The left side of the fuselage was not painted with the XB-51 designation.||(Above) 4 Sep 1949 - Prototype 6685 roll-out. Good view of the black wing and fguselage walk areas and T-tail upper surfaces. The upper fuselage intake door for the number 2 engine is rotated closed. Aircraft was nicknamed "flying cigar" because of its elongated fuselage and abbreviated wings.|
|(Above) 4 Sep 1949 - Head-on view. The original T-tail was later modified with a bullet fairing at the junction of the vertical fin and horizontal tail-planes. A small, flat-black anti-glare panel was painted in front of the pilot's windscreen.||(Above) 4 Sep 1949 - 6685 showing the Martin and XB-51 on the forward fuselage painted in red and bordered in white. Before the first flight, the square block script on the XB-51 was repainted in italics to give the impression of speed. The extremely long tow bar can be observed.|
|(Above) 4 Sep 1949 - The porthole for the Shoran operator is visible on the fuselage side immediately behind the canopy||(Above) 19 Oct 1949 - The XB-51 being prepared for a tri-service inspection and taxi demonstration|
|(Above) 19 Oct 1949 - The XB-51 during the taxi demonstration. It is unknown what purpose the cord exiting the Shoran operator window was used for||(Above) 27 Oct 1949 - Ship one with a single JATO bottle at the side of the fuselage. Also during the first flight a single JATO bottle on each side was used on take-off|

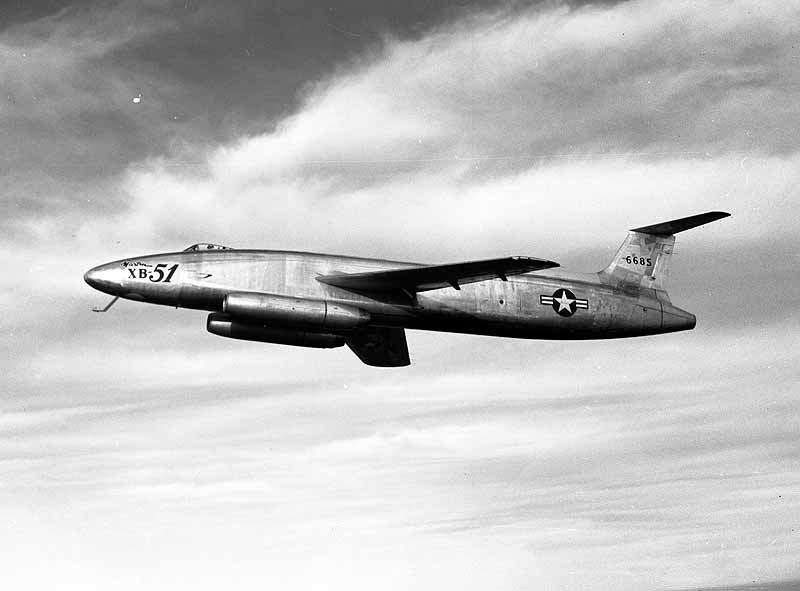

|(Above) 14 Nov 1949 - The XB-51 in flight.||(Above) 28 Feb 1950 - 6685 is prepared for a test flight. Another version of this photo exists, with the 6686 taking off in the background.|

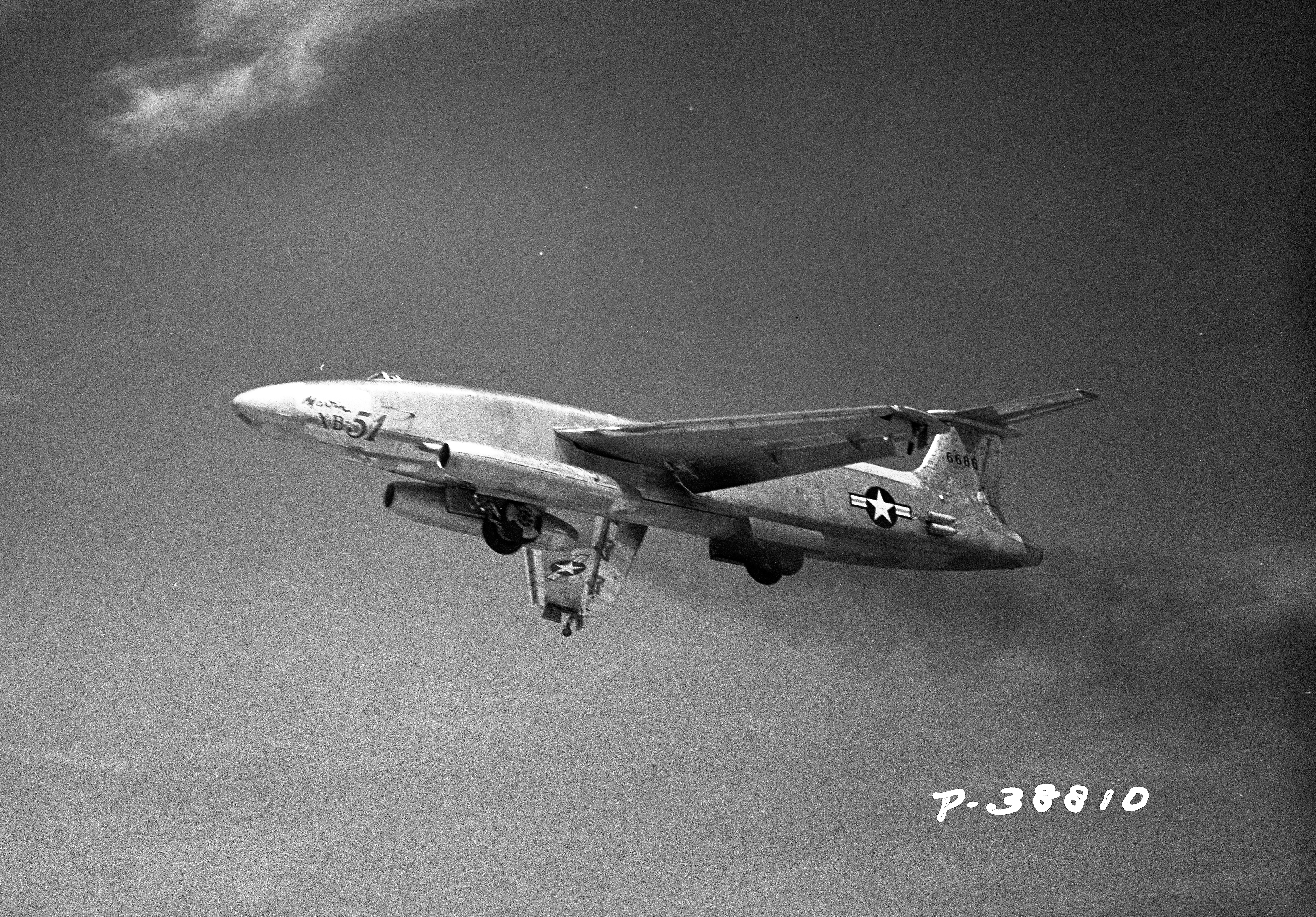

|(Above) 8 May 1950 - Take off with two JATO bottles.||(Above) 19 May 1950 - Take off with two JATO bottles.|
|(Above) 19 May 1950 -||(Above) 21 Oct 1951 - 6686 with opened gun ports. This view of the nose illustrates the flat nose glass of the forward firing strike camera.|
|(Above) 16 Jun 1952 - 6685 returns to plant after a rough landing with gear collapse on 28 Feb 1952 at Wright-Patterson AFB. During the landing approach, the Air Force pilot flared too late. The airplane made a hard landing short of the approach end of the runway, tearing off the front landing gear wheels and damaging the lower-forward section of the airframe. Damage was so extensive that the aircraft had to be disassembled and transported by truck back to Martin for repairs, whose cost reached $408,000.|
